Description
Introducing the 1.27-Socket Kit for StampS3 - the perfect solution for enhancing your M5StampS3 experience! This high-quality header features a pitch of 1.27mm, specifically designed to seamlessly integrate with the M5StampS3 development board.
With the 1.27-Socket Kit, users gain the flexibility to incorporate it into their own PCB designs, allowing them to tailor their embedded projects to their unique requirements. Whether you're a hobbyist, maker, or professional, this kit empowers you to expand the functionalities of your M5StampS3 and unlock endless possibilities.
Crafted with precision and durability in mind, this socket kit ensures a secure and reliable connection, providing a hassle-free experience during installation and usage. Its compact size and user-friendly design make it a breeze to integrate into your existing projects or prototypes.
Features

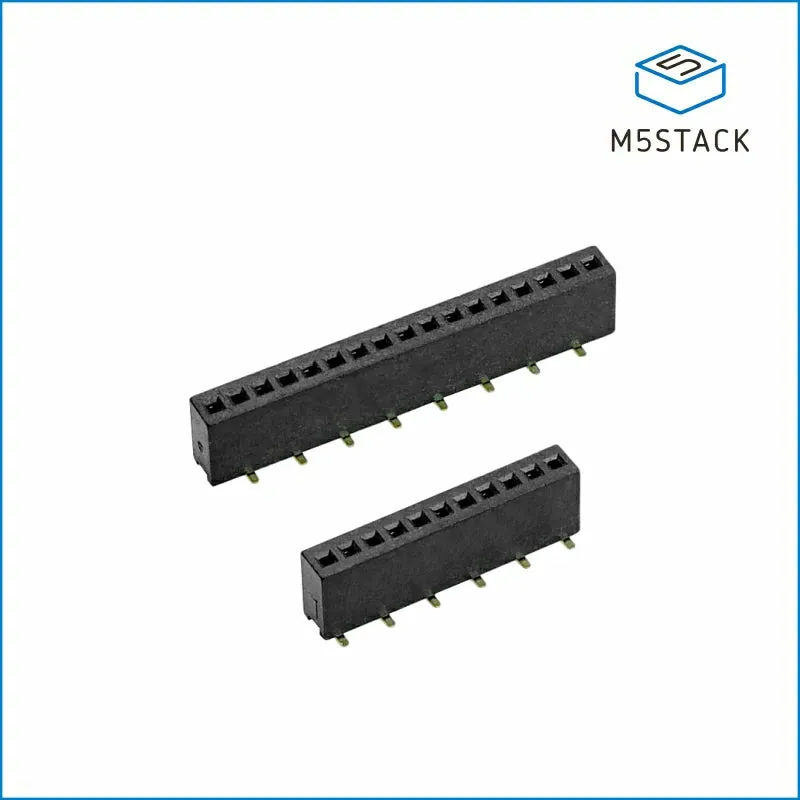

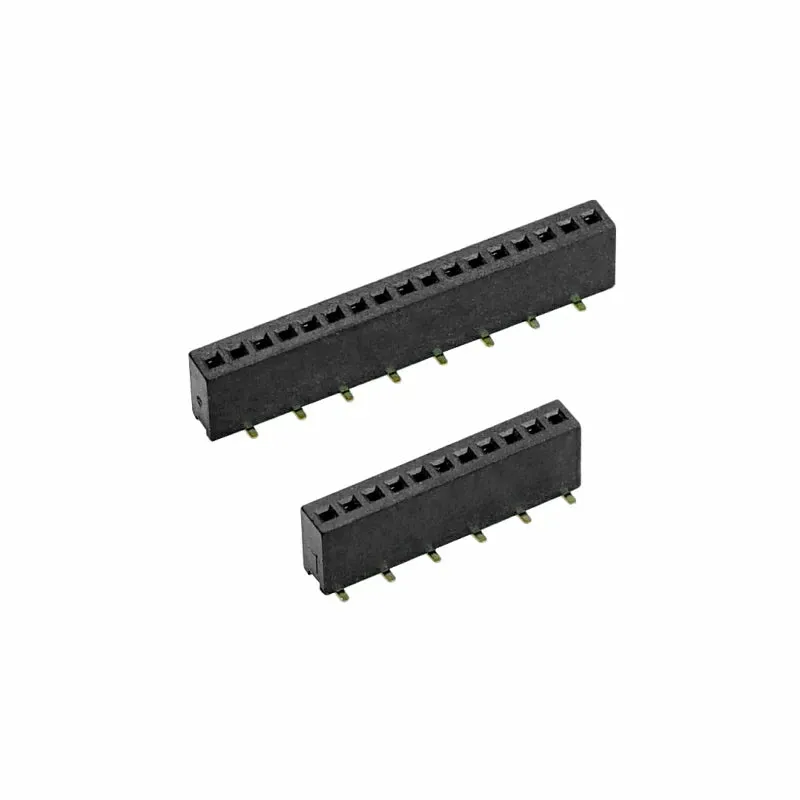

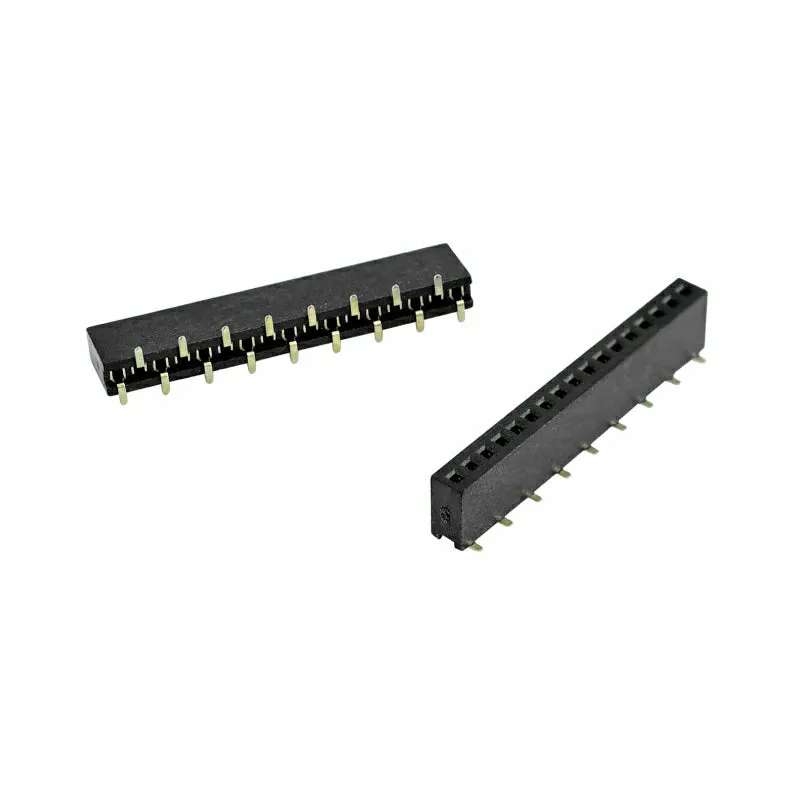

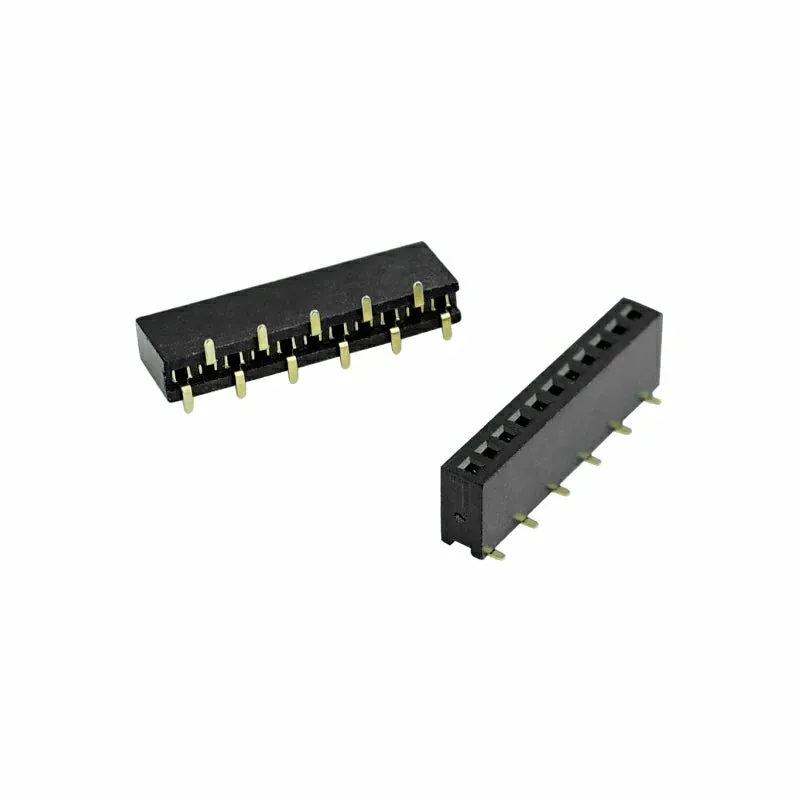

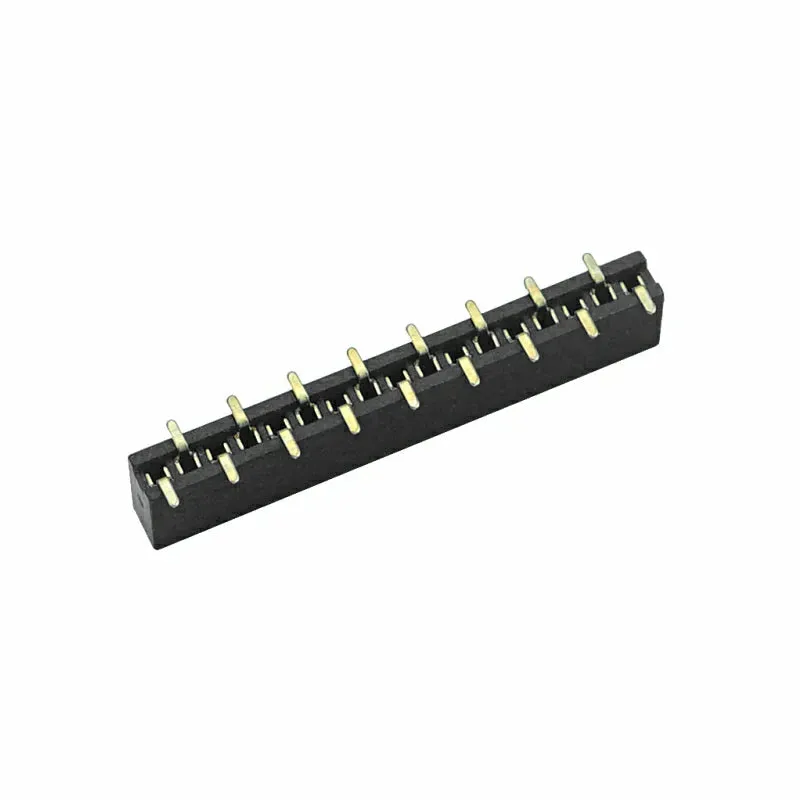

- SMD Header@17PIN and 11PIN
- 1.27mm pitch

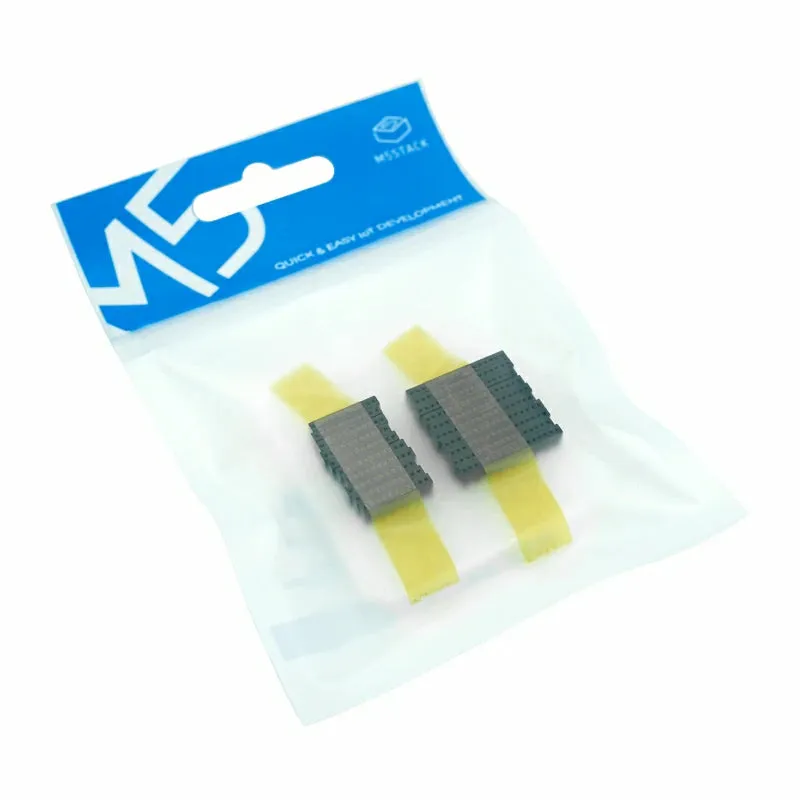

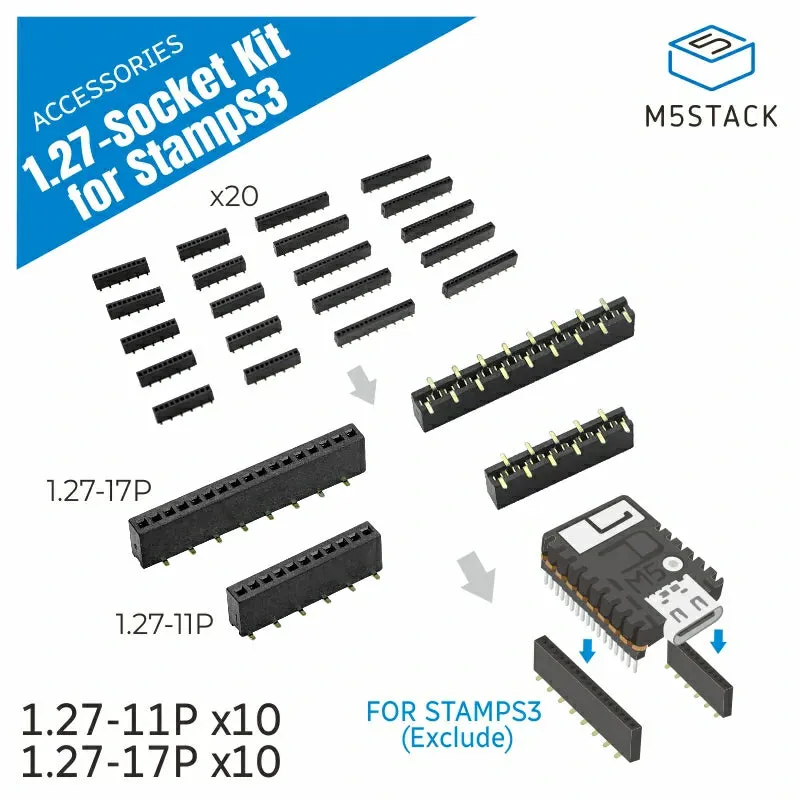

Includes

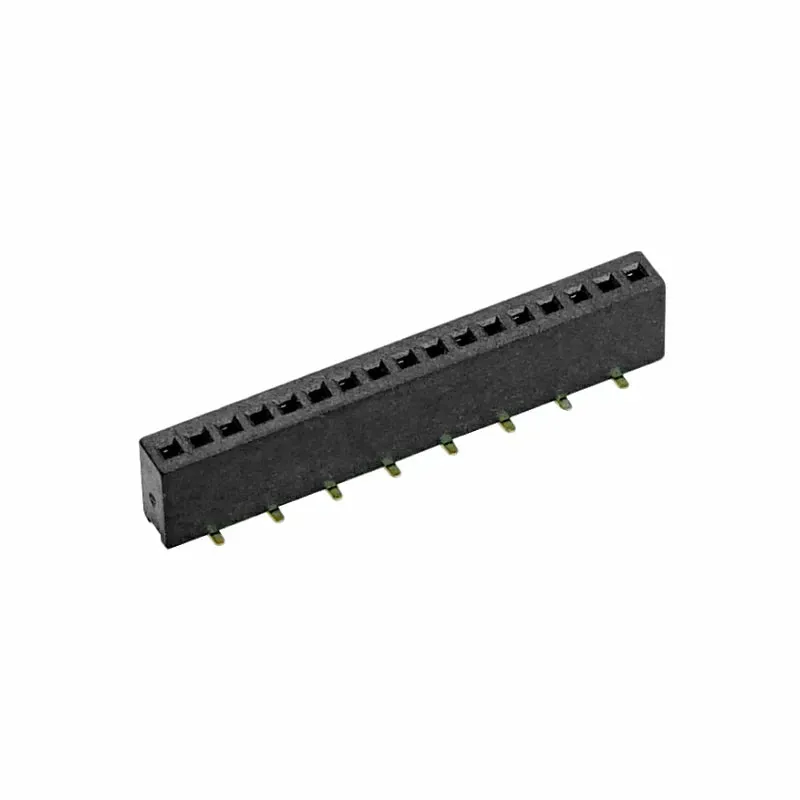

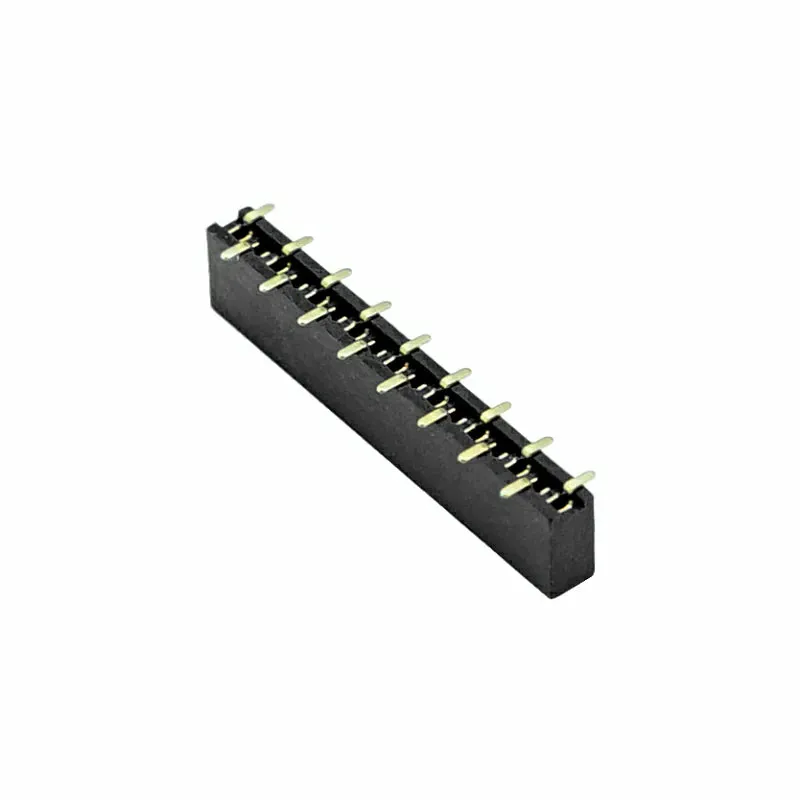

- 10 * SMD Header(1.27mm-17Pin)

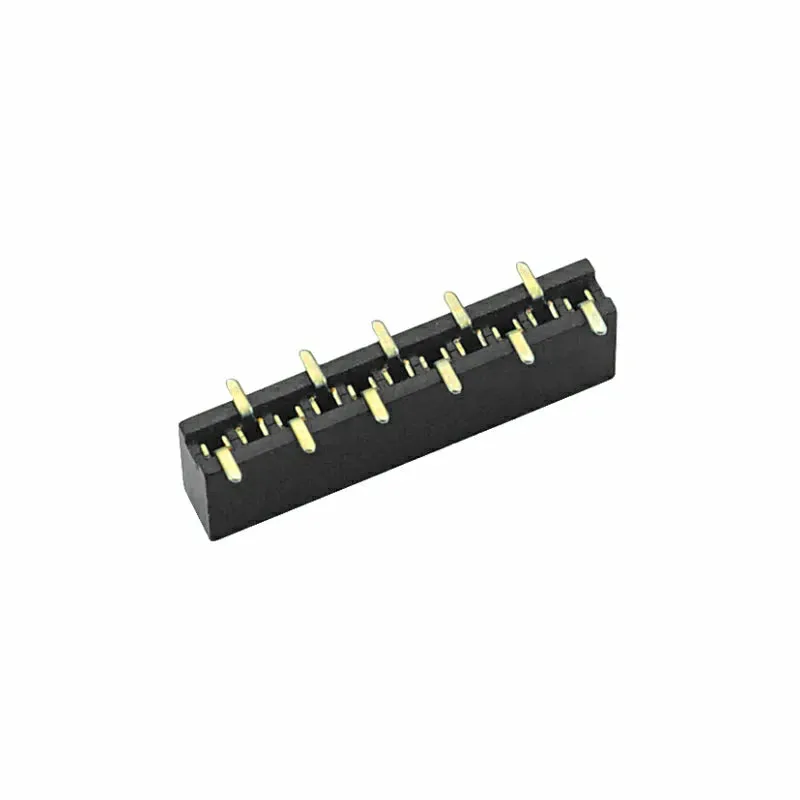

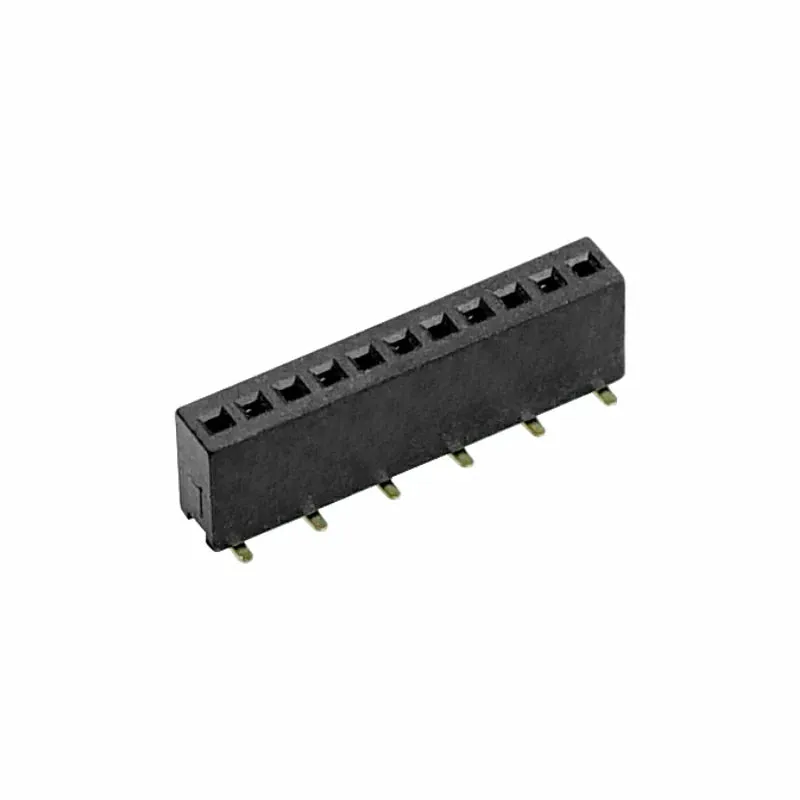

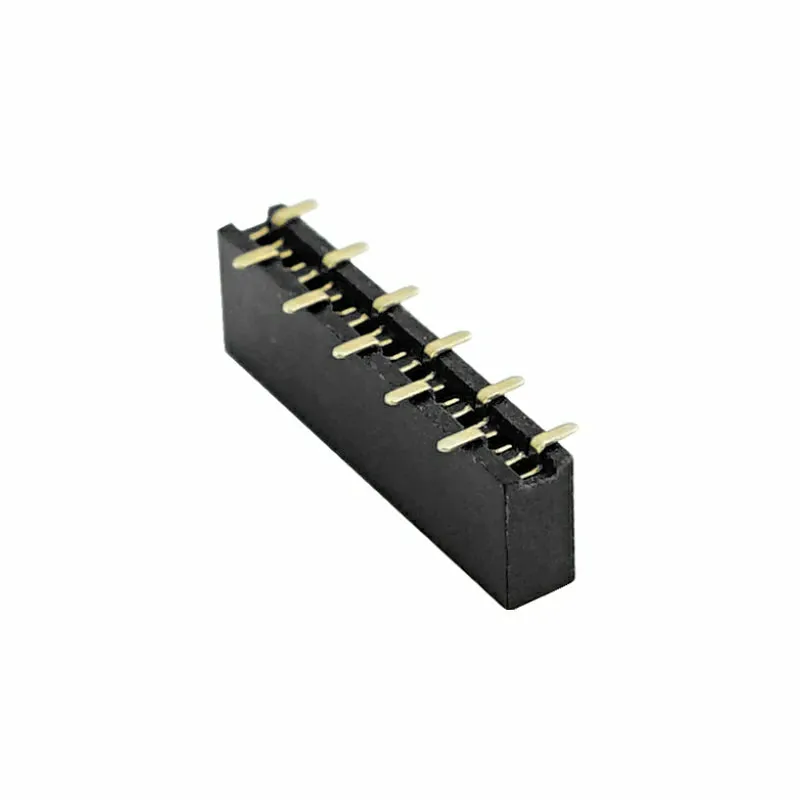

- 10 * SMD Header(1.27mm-11Pin)
Applications
- PCB DIY
Specification
| Resources | Parameters |
|---|---|
| Operate Temp | -40°C TO 105°C |
| Processing Temp | 230°C（30-60s）/ 260°C（10s） |
| SMD Header | 17Pin and 11Pin |
| Height of Header | 4.6mm |
| Pitch | 1.27mm |
| Single net weight | 0.4g(17P)/0.1g(11P) |
| Product Size | 22*4.6*3.5mm(For 17P)、14*4.6*3.5mm(For 11P) |
| Package Size | 136mm*92mm *13mm |
| Product Weight | 6.7g |
| Package Weight | 8.7g |
