Name: Dinosaur Electronics Replacement 3850712.01
SKU: 773014

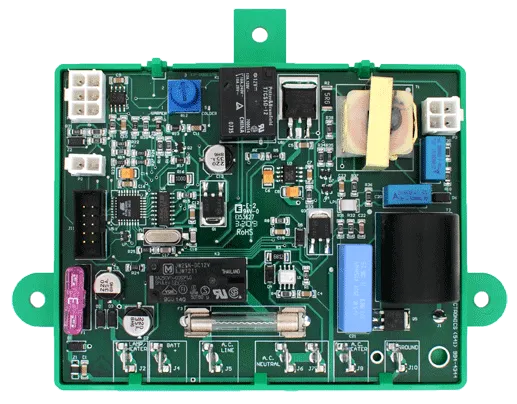

Dinosaur Electronics 3850712.01 Replacement

* Use the 3850712.01 to replace Dometic's® 3850712-xxx Black Box Board

Built in Ignitor.
2-way or 3-way operation.
Fuse protected.
Variable Temperature adjustment for those FIXED TEMP refrigerators.
The CHECK light comes on after each ignition to sense a flame.
Repeats the 3 try ignition cycle at 30 minute intervals if no flame is sensed.
* In 3-way models, the DC element will drop out and the DC mode light will flash, if the voltage level falls too low for more than 10 seconds.
Easy to remove cover included

101

*The 3850712.01 is designed to replace Dometic's® part number 3850712-xxx. Do not attempt to replace
other Black Box Board part number with this board.
If replacing a 3850415-xxx please use a Dinosaur's part
If replacing a Black Box Board with a part number that begins with "293" please use a Dinosaur's part
